Products > Tube and Pipe > Carbon Steel Tube and Pipe > ASTM A106/API5L seamless boiler tube

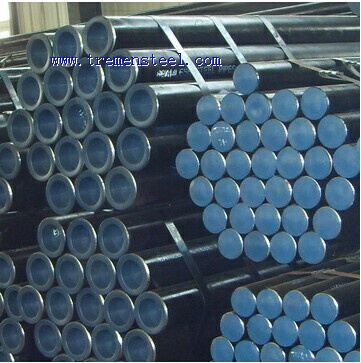

Product name : ASTM A106/API5L seamless boiler tube
Item : 20146913329
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
Quick Detail:


ASTM A106/API 5L  Seamless boiler tube

Standard: ASTM A106/API5L

OD. Range:6mm – 16mm

Wall thickness: 1mm-36mm

Length: Max length 12M

Type: Seamless boiler tube

Packaging detail: Bundles with plastic paper packaged or wooden box package

Delivery date: 10-30days

Description:

ASTM A106/API5L Boiler seamless steel tube

To be used for heat-exchange, steam,condensers and similar heat transfer apparatus, high temperature service

Standard: ASTM A106/API5L

OD. Range:6mm – 16mm

Wall thickness: 1mm-36mm

Length: Max length 12M

Type: Seamless boiler tube

Packaging detail: Bundles with plastic paper packaged or wooden box package

Technique: cold drawing, cold rolled

Applications:

Heat exchangers tubes

Steam tubes

Condensers tubes

similar heat transfer apparatus tubes

high temperature service

Specifications:

Grade and Chemical Composition (  )

Grade

C

Mn

P

S

Si

Cr

Cu

Mo

Ni

V

A

0.25

0.27-0.93

0.035

0.035

0.10

0.40

0.40

0.15

0.40

0.08

B

0.30

0.29-1.06

0.035

0.035

0.10

0.40

0.40

0.15

0.40

0.08

C

0.35

0.29-1.06

0.035

0.035

0.10

0.40

0.40

0.15

0.40

0.08

Mechanical properties

Grade

Tensile Strength Rm (Mpa)

Yield Point (Mpa)

Elongation A %

Delivery Condition

A

≥ 330

≥ 205

20

Annealed

B

≥ 415

≥ 240

20

Annealed

C

≥ 485

≥ 275

20

Annealed

Tolerance

Pipe Type

Pipe Sizes

Tolerances

Cold Drawn

OD

≤ 48.3mm

± 0.40mm

≥ 60.3mm

± 1%mm

WT

± 12.5%
